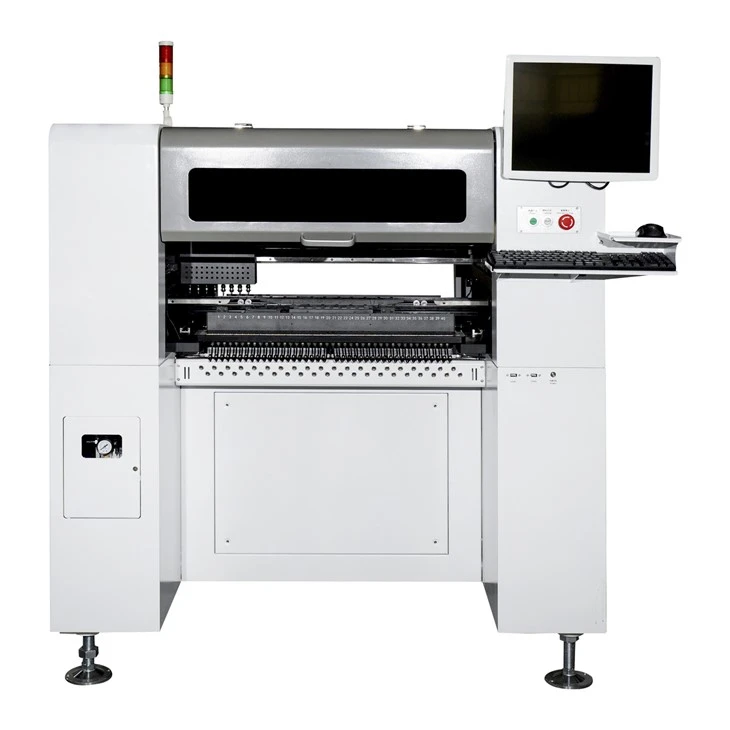

High-Accuracy 8-Head SMT Pick & Place Machine for High-Speed PCB Assembly

The HW-T8-80F is an 8-head high-accuracy SMT pick-and-place machine designed for fast and reliable PCB assembly. It offers a mounting speed of 12,000–13,000 pcs/h, with 0.01 mm positioning accuracy and 0.02 mm repeated mounting accuracy. The machine supports up to 68/80 feeders and PCBs up to 500 × 350 mm, making it suitable for a wide range of SMT production applications.

The machine features simultaneous recognition and picking, multiple recognition cameras, automatic PCB positioning, and electric track adjustment for efficient operation. Its high-precision motion system combines a double linear motion guide with a double ground ballscrew, while the AC servo motor, high-speed DSP driver, Japanese CKD vacuum generator, and Windows-based SMT intelligent OS provide accurate and stable performance. With 800 W average power, dimensions of 1410 × 1500 × 1540 mm, and a weight of 850 kg, the HW-T8-80F is built for demanding production environments.

TECHNICAL SPECIFICATIONS

HW-T8-80F Specifications

Key specifications of the HW-T8-80F high-accuracy SMT pick-and-place machine, covering its placement performance, component handling, vision system, motion control, and machine configuration.

Machine Model HW-T8-80F
Number of Placement Heads 8 (High-Accuracy)
Number of IC Trays 48
Number of Feeders 68/80 (Subject to 8 mm Feeder)
Positioning Accuracy 0.01 mm
Repeated Mounting Accuracy 0.02 mm
Mounting Speed 12,000 – 13,000 PCs/h
Applicable Components Resistor, Capacitor, Chip, Lamp Bead, etc.
Supported Maximum Area of PCB 500 × 350 mm
Feeder Types Electric Feeder, Pneumatic Feeder, Vibrating Feeder, IC Tray, etc.
Recognition Devices Mark Camera ×1, Fast Recognition Camera ×4, High-Precision Camera ×1
Maximum Height of Applicable Components ≤ 7 mm
Recognition Methods Simultaneous Recognition and Picking with Eight Heads
PCB Convey Mode Three-Stage Entry, Automatic Connection from Left to Right, Automatic PCB Positioning
Mark Positioning Manual / Automatic
Programming Method Automatic Programming after Manually Importing Files of PCB Coordinates
Control System HuaweiGuochuang Control System
Maximum Step Length of XY Axis 629 mm × 679 mm
Tracks of XY Axis Double Linear Motion Guide + Double Ground Ball Screw
Motion Mode of XY Axis Intelligent Linkage of Acceleration and Deceleration of Curve and Line, Integrated Linear Interpolation Algorithm
Control Computer Industrial Control Computer with Intel High-Performance Processor
Adjusting Method of Tracks Electric
Range of Nozzle Buffer 4.5 mm
Maximum Step Length of Z Axis 20 mm
Range of Angle for Components ±180°
Motor AC Servo Motor
Driver High-Speed DSP Driver
Air Supply Requirements Oil & Water Filter, ≥ 60L Dust Filter, Air Pressure Stabilizer, etc.
Vacuum Supply of Nozzle Japanese CKD Vacuum Generator Integrating High-Speed Vacuum Burst Function
Range of Air Supply Pressure 0.5 – 0.6 MPa
Operating System Independent Research and Development SMT Intelligent OS Based on Windows
Vision Display 17-Inch Industrial Control Display
Cable German Igus Durable Flexible Cable (10 Million Times)
Power Supply 220 V / 50/60 Hz
Average Power 800 W
Machine Dimensions 1410 × 1500 × 1540 mm
Machine Weight 850 kg
