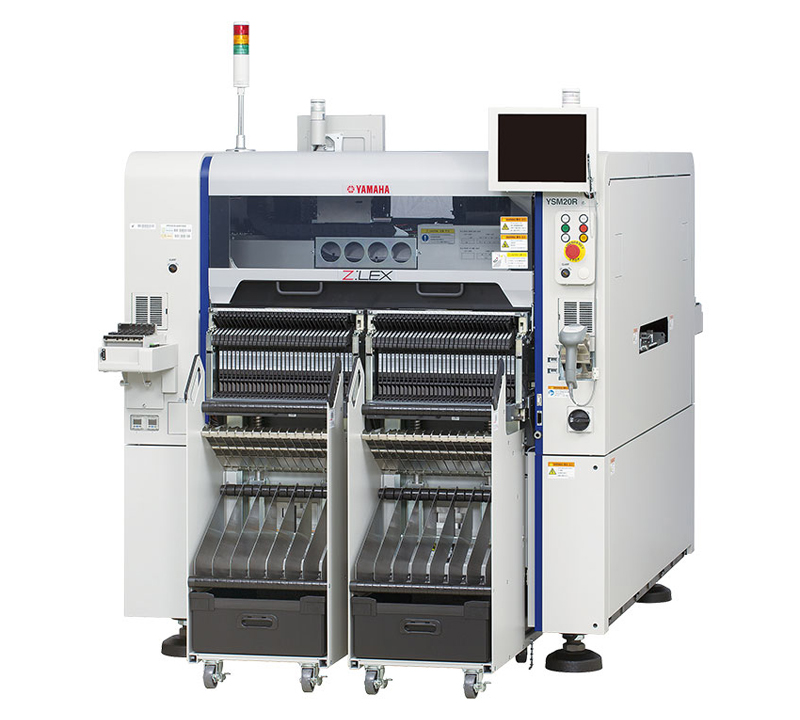

The Yamaha YSM20R is a high-speed multi-purpose mounter designed for demanding SMT production environments, offering a mounting capability of up to 95,000 CPH with an X-axis 2-beam configuration. It supports a wide range of PCB sizes, from 810 × 490 mm to 50 × 50 mm, providing flexibility for both standard and large-board production.
With support for components ranging from 0201 mm to W55 × L100 mm and component heights up to 28 mm, the YSM20R combines high-speed placement with versatile component handling. Its high-capacity component storage and flexible configuration make it suitable for high-volume, multi-product SMT manufacturing.
TECHNICAL SPECIFICATIONS
Yamaha YSM20R Specifications
Key technical specifications of the Yamaha YSM20R high-speed multi-purpose mounter for flexible and high-volume SMT production.
| Machine Model | YSM20R |
|---|---|
| Applicable PCB |
Single Lane: L810 × W490 mm to L50 × W50 mm Dual Stage: 1 PCB L810 × W490 mm to L50 × W50 mm 2 PCB Conveyance: L380 × W490 mm to L50 × W50 mm |
| Head / Applicable Components |
High-Speed Multi (HM) Head: 0201 mm to W55 × L100 mm, Height 15 mm or less Odd-Shaped Components (FM): Flexible Multi (FM) Head: 03015 mm to W55 × L100 mm, Height 28 mm or less |
| Mounting Capability |
X-axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) Head × 2 95,000 CPH |
| Mounting Accuracy | ±0.035 mm (±0.025 mm), Cpk ≥ 1.0 (3σ) |
| Number of Component Types |
Fixed Plate: Max. 140 types Feeder Carriage Exchange: Max. 128 types Trays: Max. 30 types with sATS30 |
| Power Supply | 3-Phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz |
| Air Supply Source | 0.45 MPa or more, in clean, dry state |
| External Dimensions | L1,374 × W1,857 × H1,445 mm (Main unit only) |
| Machine Weight | Approx. 2,050 kg (Main unit only) |
