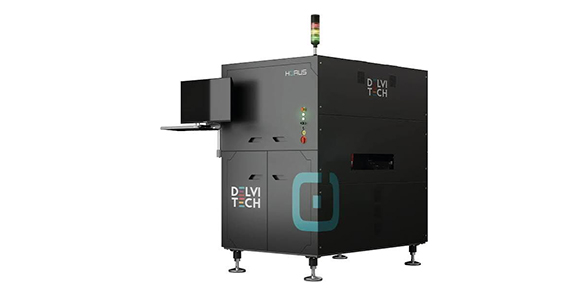

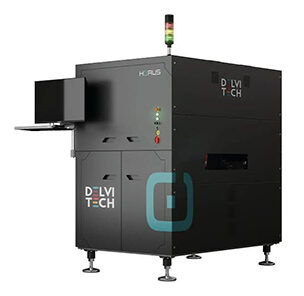

AI-Powered Automated Optical Inspection (AOI)
- Home
- Loader
- AI-Powered Automated Optical Inspection (AOI)
TECHNICAL SPECIFICATIONS
Machine Specifications
Engineered for high-speed, high-precision PCB inspection with advanced AI, true 3D optical measurement, and seamless SMT production line integration.
| Machine Type | Automated Optical Inspection (AOI) |
|---|---|
| Inspection Technology | AI-Based True 3D Optical Inspection |
| Camera Resolution | 25 MP High-Speed Camera |
| Height Resolution | 2 ฮผm |
| Inspection Speed | 0.6 sec / Field of View |
| Maximum PCB Size | 560 ร 550 mm |
| Minimum PCB Size | 50 ร 50 mm |
| PCB Thickness | 0.5 โ 5 mm |
| Maximum PCB Weight | 5 kg |
| Lighting System | Structured RGBW LED Lighting |
| Operating System | Windows 11 |
| Data Processing | 40 Gbit/sec |
| Machine Weight | Approx. 1170 kg |
KEY FEATURES
AI-Driven Inspection for Superior PCB Quality
The AOI system combines advanced artificial intelligence, high-resolution imaging, and true 3D inspection technology to detect manufacturing defects with exceptional speed, accuracy, and consistency.
AI-Powered Inspection
Advanced neural network technology minimizes false calls while improving inspection accuracy.
25 MP Vision Camera
Captures ultra-high-resolution images for precise defect detection and analysis.
True 3D Inspection
Performs accurate height measurement for reliable solder joint and component inspection.
High-Speed Processing
Inspects PCBs rapidly with optimized data processing for maximum production throughput.
Comprehensive Defect Detection
Detects missing, misplaced, polarity, OCR, solder, and component defects automatically.
Industry 4.0 Ready
Supports intelligent factory integration with centralized monitoring and production analytics.
Industries we serve
Our Automated Optical Inspection (AOI) solutions support a wide range of electronics manufacturing industries by delivering intelligent defect detection, enhanced quality assurance, and reliable inspection throughout the SMT production process.
