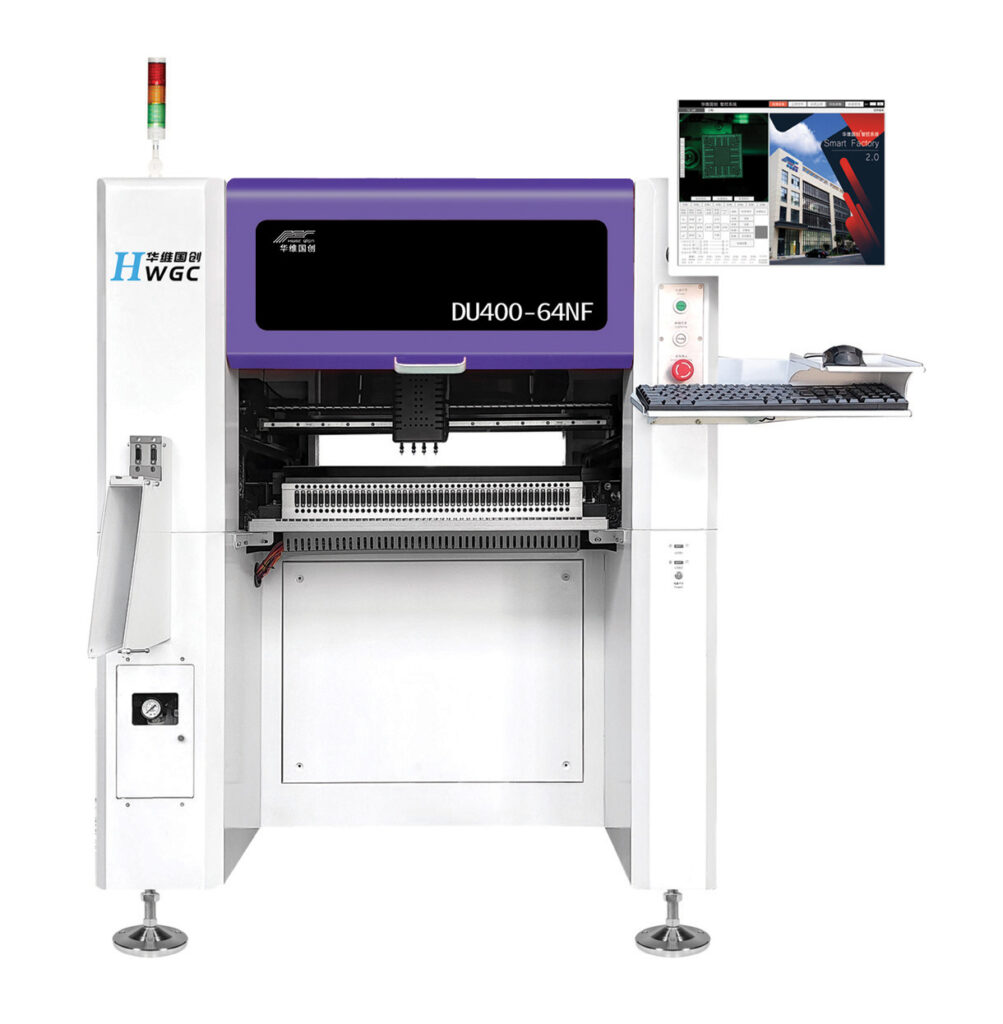

High-Accuracy 8-Head SMT Pick & Place Machine for Flexible PCB Assembly
The HWGC HW-DU400-64F is an 8-head high-accuracy SMT pick-and-place machine designed for efficient and precise PCB assembly. It features 8 high-accuracy placement heads, supports up to 64 feeders, and provides a positioning accuracy of 0.01 mm with repeated mounting accuracy of 0.02 mm. With a mounting speed range of up to 12,000 pcs/h and support for components such as resistors, capacitors, chip components, and lamp beads, it is suitable for a wide range of SMT production requirements.
The machine supports PCBs up to 510 × 450 mm and accommodates components up to 20 mm in height. Its configuration includes mark and recognition cameras, electric/pneumatic/vibrating feeders, IC trays, intelligent XY-axis motion control, high-precision servo motors, and a Japanese CKD vacuum generator. With automatic track adjustment, a 17-inch industrial control display, and a compact 1316 × 1360 × 1340 mm footprint, the HW-DU400-64F offers a practical combination of precision, flexibility, and production efficiency.
HWGC HW-DU400-64F Specifications
Key specifications of the HWGC HW-DU400-64F high-accuracy SMT pick-and-place machine, covering its placement performance, component handling, vision system, motion control, and machine configuration.
| Machine Model | HWGC HW-DU400-64F |
|---|---|
| Number of Placement Heads | 8 (High-Accuracy) |
| Number of IC Trays | 4 |
| Number of Feeders | 64 (Subject to 8 mm Feeder) |
| Positioning Accuracy | 0.01 mm |
| Repeated Mounting Accuracy | 0.02 mm |
| Mounting Speed | 12,000 pcs/h |
| Applicable Components | Resistor, Capacitor, Chip, Lamp Bead, etc. |
| Applicable PCB Size | 510 × 450 mm |
| Feeder Types | Electric Feeder, Pneumatic Feeder, Vibrating Feeder, IC Tray, etc. |
| Recognition Devices | Mark Camera ×1, Fast Recognition Camera ×4, High-Precision Recognition Camera ×1 |
| Maximum Component Height | ≤ 20 mm |
| PCB Convey Mode | Three-Stage Entry, Automatic Connection from Left to Right, Automatic PCB Positioning |
| Mark Positioning | Manual / Automatic |
| Programming Method | Automatic Programming after Manually Importing PCB Coordinate Files |
| Control System | HuaweiGuochuang Control System |
| Maximum Step Length of XY Axis | 629 mm × 679 mm |
| Tracks of XY Axis | Dual-Axis Linear Motion Guide + Double Ground Ballscrew |
| Motion Mode of XY Axis | Intelligent Linkage of Acceleration and Deceleration of Curve and Line, Integrated Linear Interpolation Algorithm |
| Control Computer | Industrial Control Computer with High-Performance Processor |
| Track Adjustment | Electric |
| Nozzle Buffer Range | 4.5 mm |
| Maximum Nozzle Length | 20 mm |
| Component Rotation Angle | ±180° |
| Motor | High-Precision Servo Motor |
| Driver | High-Speed DSP Driver |
| Air Supply Requirements | Oil & Water Filter, ≥50 L Dust Filter, Air Pressure Stabilizer, etc. |
| Vacuum Supply of Nozzle | Japanese CKD Vacuum Generator with High-Speed Vacuum Burst Function |
| Air Supply Pressure | 0.5 – 0.6 MPa |
| Operating System | Independent R&D SMT Intelligent OS Based on Windows |
| Vision Display | 17-Inch Industrial Control Display |
| Cable | German Durable Flexible Cable (10 Million Times) |
| Power Supply | 220 V / 50/60 Hz |
| Average Power | 600 W |
| Machine Dimensions | 1316 × 1360 × 1340 mm |
| Machine Weight | 580 kg |
