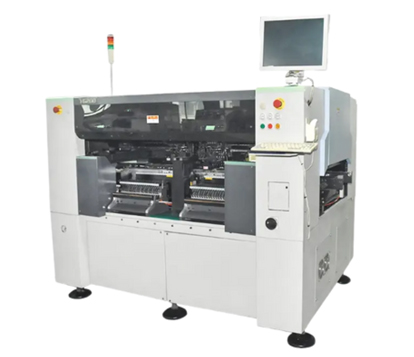

Yamaha YG200 Automatic Pick & Place Mounter

The Yamaha YG200 is an automatic pick-and-place mounter designed for efficient and accurate SMT component placement. With an ideal cycle time of 0.147 sec/chip and a practical placement capacity of up to 25,000 CPH, it provides reliable performance for PCB assembly applications.

The machine supports PCB sizes from 50 × 50 mm to 330 × 250 mm and components ranging from 0402 to 14 mm, with four heads and 24 nozzles for flexible placement operations. Its ±0.05 mm chip placement accuracy and 80 feeder stations make it suitable for varied SMT production requirements.

TECHNICAL SPECIFICATIONS

Yamaha YG200 Specifications

Key technical specifications of the Yamaha YG200 automatic pick-and-place mounter for efficient SMT component placement.

Machine Type Automatic Pick and Place Mounter
Brand Yamaha
Machine Model YG200
Cycle Time 0.147 sec/chip (Ideal)
Mounting Capacity 34,800 CPH (Ideal) / 25,000 CPH (Practical)
PCB Size 50 × 50 mm – 330 × 250 mm
Placement Accuracy ±0.05 mm / Chip, ±0.09 mm / QFP
Repeatability ±0.03 mm
PCB Thickness 0.4 – 3 mm
Feeder Stations 80 EA
Component Range 0402 – 14 mm
Maximum Component Height 6.5 mm
Number of Heads 4 Heads
Number of Nozzles 24 Nozzles
Power Supply AC 200–416 V ±10%, 50/60 Hz, 3 Phase
Power Consumption 4.0 kVA
Air Pressure 0.55 – 0.7 MPa
Air Consumption 350 ml/min
Machine Size 1655 × 1408 × 1850 mm
Machine Weight Approx. 2080 kg
