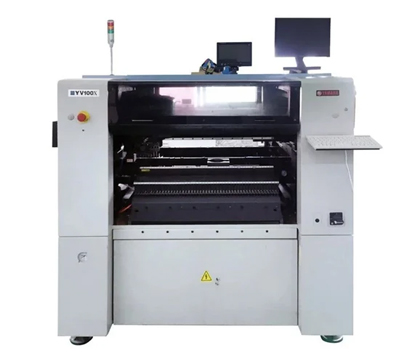

Yamaha YV100X High-Speed Chip Mounter

The Yamaha YV100X is a high-speed chip mounter designed to maximize production output while maintaining reliable and accurate component placement. With a mounting speed of up to 0.198 seconds per chip and programmable PCB backup pins, it delivers stable performance for demanding SMT production environments.

Equipped with a full-digital multi-view camera, the YV100X supports components ranging from 0.6 × 0.3 mm to 100 mm connectors, while its flying nozzle changing system eliminates nozzle changeover loss time. The machine also supports multiple feeder types, including tapes, sticks, bulks, and trays, providing flexible component handling for diverse production requirements.

TECHNICAL SPECIFICATIONS

Yamaha YV100X Specifications

Key specifications of the refurbished Yamaha YV100X chip mounter, covering its mounting performance, component handling, and machine configuration.

Machine Model Yamaha YV100X
Machine Type High-Speed Chip Mounter
Maximum PCB Size 460 × 445 mm
Minimum PCB Size 50 × 50 mm
Mounting Speed 0.198 sec/chip
Chip Mounting Accuracy ±0.1 mm
QFP Mounting Accuracy ±0.08 mm
Mounting Angle ±180°, 0.01°
Component Range 0.6 × 0.3 mm – 32 × 32 mm
Maximum Component Height 6.5 mm
Feeder Capacity 8 – 56 mm Tape
Component Supply Tapes, Sticks, Bulks & Trays
Mounting Data 10,000 Mounting Lines
Production Data 500 Programs
Machine Dimensions 1655 × 1408 × 1850 mm
Machine Weight Approx. 1,450 kg
