High-Speed Precision SMT Pick & Place with Advanced Flying Vision

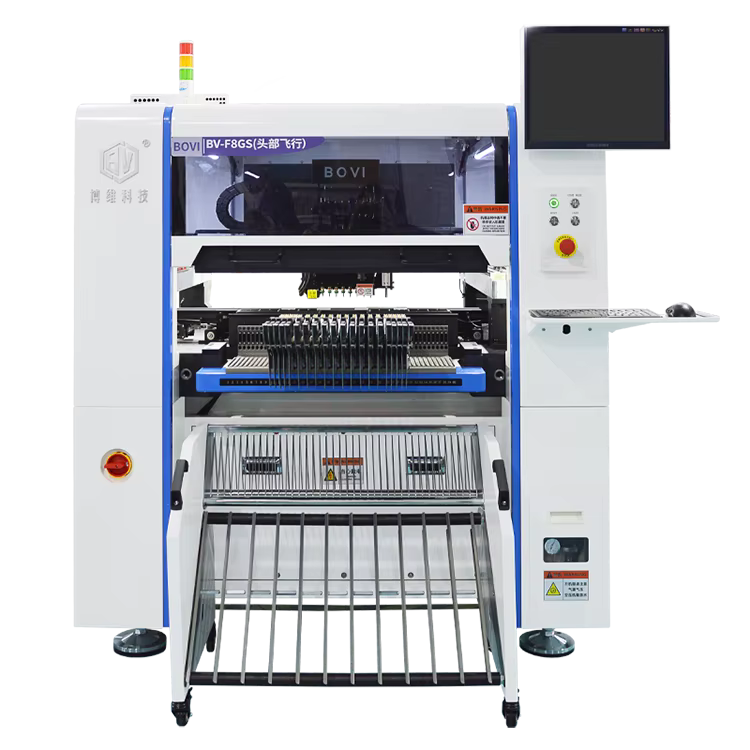

BOVI BV-F8GS is a high-speed 8-head SMT pick-and-place machine featuring a granite base and head-mounted flying vision alignment system. With a placement rate of 22,000–30,000 CPH, it combines high-speed operation with precision and stability. The machine uses a magnetic levitation linear motor, HIWIN high-precision motion components, and Japanese servo motors for reliable and accurate component placement.
Designed for flexible PCB assembly, the BV-F8GS supports 8-head simultaneous pick-up, head-mounted flying vision, and bottom vision alignment. It also provides dual front and rear operator displays for two-side operation and can automatically recognize and place loose components from bulk trays. Optional features such as a short-tape feeder and high-resolution camera further extend its production capabilities
BOVI BV-F8GS Specifications
Key specifications of the BOVI BV-F8GS high-speed 8-head SMT pick-and-place machine, covering placement performance, vision system, component handling, and machine configuration.
| Machine Model | BOVI BV-F8GS |
|---|---|
| Machine Type | High-Speed 8-Head SMT Pick & Place Machine |
| Placement Rate | 22,000 – 30,000 CPH |
| Pick-Up System | Independent 8-Head Simultaneous Pick-Up |
| Vision System | Head-Mounted Flying Vision + Bottom Vision Alignment System |
| Machine Base | Granite Base with Steel Keel Structure (Solid Cement-Filled Steel Chassis) |
| Machine Weight | Approx. 1.5 Tons |
| Feeder Capacity | 88 NXT Feeder Slots |
| Bulk Component Tray | Automatic Recognition & Placement from Bulk Component Tray (26 Compartments) |
| Motion System | HIWIN High-Precision Ground Ballscrew and HIWIN High-Load Linear Guideway |
| XY Axis | Japanese Servo Motors with Positioning Accuracy Error within 0.01 mm |
| Z Axis | Closed-Loop System with 8 Sets |
| Operator Display | Dual Front and Rear Operator Displays for Two-Side Operation |
| Track Width Adjustment | Adjusted via Lead Screw |
| PCB Support | PCB Support Plate |
| Programming | Component Library + MES System Support |
| Short-Tape Feeder | Optional — Supports Components from Pre-Cut Short Tape Segments |
| High-Resolution Camera | Optional — For Higher Placement Accuracy |
