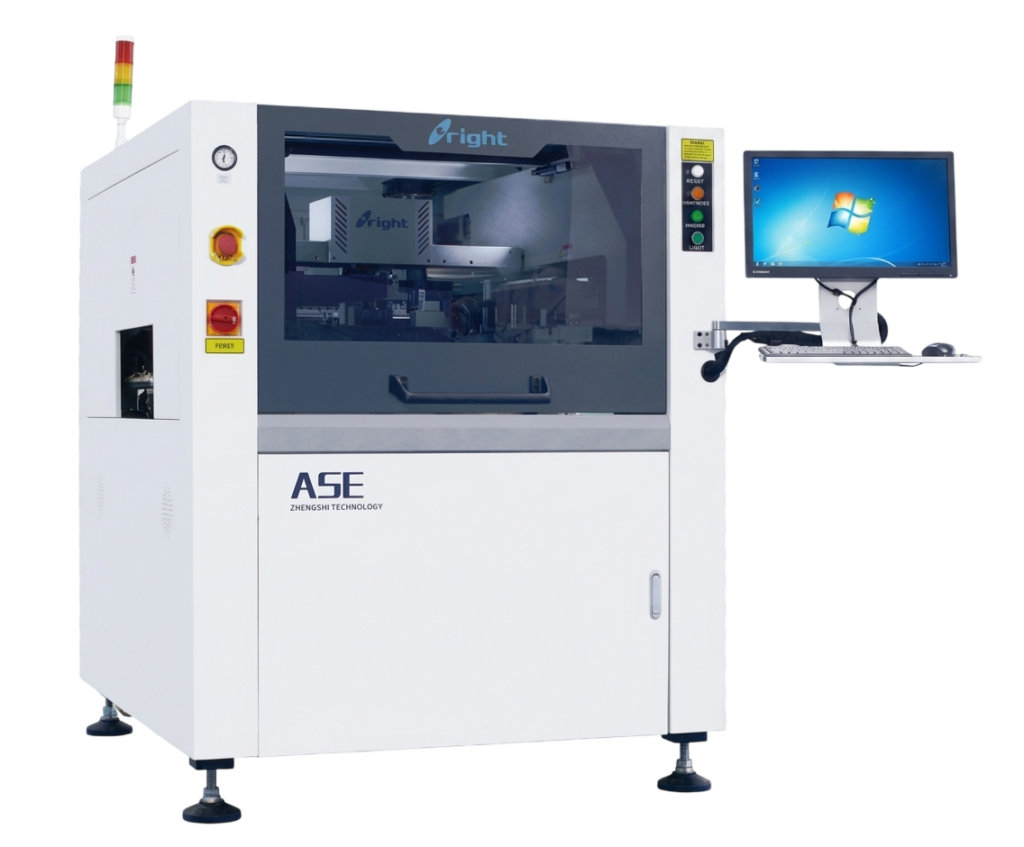

Fully Automatic Visual Printer (ASE)
- Home
- Fully Automatic Visual Printer (ASE)
- 0201 Component Printing
- ±0.025mm Accuracy
- Automatic Vision Alignment
- 7 Second Cycle Time
TECHNICAL SPECIFICATIONS
Machine Specifications
Designed for high-precision solder paste printing with intelligent automation, advanced vision technology, and dependable performance for modern SMT manufacturing.
| Machine Type | Fully Automatic Visual Printer |
|---|---|
| PCB Size | 50 × 50 mm – 400 × 340 mm (510 × 340 mm Optional) |
| PCB Thickness | 0.4 – 6 mm |
| Printing Accuracy | ±0.025 mm |
| Repeat Position Accuracy | ±0.01 mm |
| Printing Speed | 10 – 200 mm/sec |
| Vision System | 1.3 MP Digital Camera with Up & Down Imaging |
| Cleaning Method | Dry / Wet / Vacuum Automatic Cleaning |
| Control System | PC Based Control with Smart UI |
| Communication | SMEMA Standard Interface |
| Power Supply | AC 220V ±10%, 50/60Hz, 2.5 kW |
| Air Pressure | 4 – 6 kgf/cm² |
| Machine Weight | Approx. 1000 kg |
KEY FEATURES
Advanced Printing Performance for Modern SMT Manufacturing
The Fully Automatic Visual Printer combines intelligent vision alignment, precision motion control, and automated printing technology to deliver consistent solder paste deposition with maximum efficiency.
Vision Alignment System
High-resolution vision system ensures precise PCB and stencil alignment before every print.
High Printing Accuracy
Delivers repeatable solder paste printing with accuracy up to ±0.025 mm.
Automatic Stencil Cleaning
Supports dry, wet, and vacuum cleaning for consistent print quality.
Smart PLC Control
Advanced control system with intuitive interface for reliable machine operation.
High-Speed Production
Fast printing cycle improves productivity while maintaining exceptional accuracy.
SMT Line Integration
Compatible with standard SMT production lines through SMEMA communication.
Why Choose This Printer
Precision Printing
Delivers ±0.025mm printing accuracy.
Smart Vision System
Automatic fiducial recognition and alignment.
Faster Production
7-second printing cycle improves throughput.
Reliable Automation
Continuous operation with minimal downtime.
Industries we serve
The Fully Automatic Visual Printer is widely used in SMT production lines for precise solder paste printing on PCBs across high-volume electronics manufacturing. It is ideal for consumer electronics, automotive electronics, industrial automation, telecommunications, medical devices, LED lighting, power electronics, and EMS manufacturing where accuracy and consistency are critical.
Consumer Electronics
Automotive Electronics
Industrial Electronics
Telecommunications
EMS Manufacturing
R&D & Prototype Production
MACHINE HIGHLIGHTS
Built for Precision & Productivity
Equipped with advanced automation, intelligent vision technology, and high-speed performance, the Fully Automatic Visual Printer delivers reliable results for demanding SMT production lines.
1.3 MP Vision Camera
Advanced vision alignment ensures precise PCB positioning before every print.
±0.025 mm Accuracy
Delivers highly accurate and repeatable solder paste printing for fine-pitch PCBs.
7 Second Cycle
Fast production cycle improves throughput without compromising print quality.
Automatic Cleaning
Dry, wet and vacuum cleaning maintain stencil quality for consistent printing.
SMEMA Compatible
Easily integrates with standard SMT equipment for a seamless production line.
Smart PLC Control
Intelligent PLC and touchscreen interface provide reliable and user-friendly operation.
