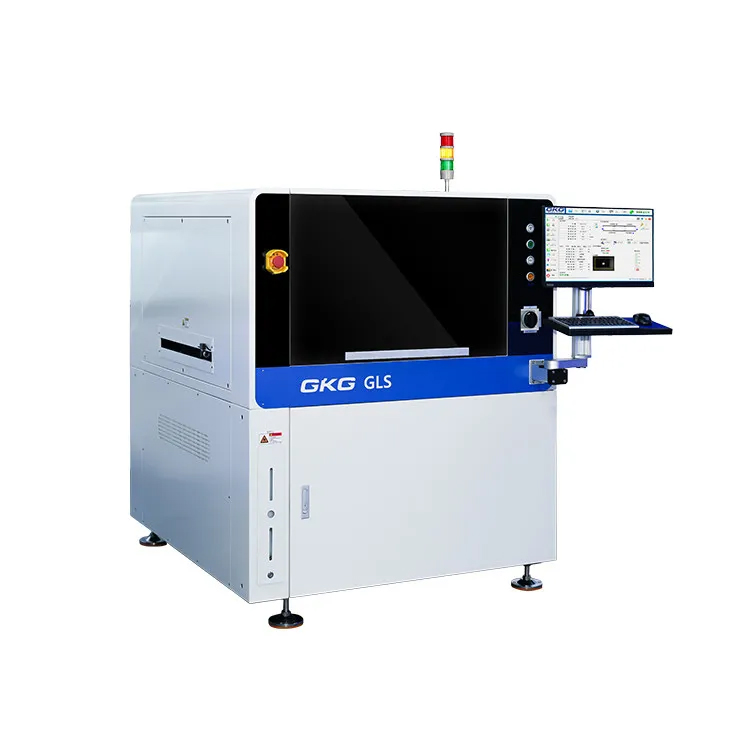

GKG GLS-E Fully Automatic Solder Paste Printer
- Home
- GKG GLS-E Fully Automatic Solder Paste Printer
- ±22 μm Print Accuracy
- 1.3 MP CCD Vision System
- Automatic Dry, Wet & Vacuum Cleaning
- SMEMA Compatible
TECHNICAL SPECIFICATIONS
Machine Specifications
Built for high-speed SMT production, the GKG GLS-E delivers outstanding printing precision, flexible PCB handling, and intelligent automation for demanding manufacturing environments.
| Machine Type | GKG GLS-E Fully Automatic Solder Paste Printer |
|---|---|
| Maximum PCB Size | 510 × 510 mm |
| Minimum PCB Size | 50 × 50 mm |
| PCB Thickness | 0.4 – 6 mm |
| Print Accuracy | ±22 μm |
| Repeat Position Accuracy | ±12.5 μm |
| Vision System | 1.3 MP CCD Camera |
| Printing Speed | 10 – 200 mm/sec |
| Cleaning System | Dry / Wet / Vacuum Automatic Cleaning |
| Control System | PLC Based Intelligent Control |
| Communication | SMEMA Standard Interface |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Air Pressure | 4 – 6 kgf/cm² |
| Machine Weight | Approx. 1100 kg |
KEY FEATURES
Advanced Printing Technology for Superior SMT Performance
The GKG GLS-E combines precision engineering, intelligent automation, and advanced vision technology to deliver exceptional solder paste printing accuracy, productivity, and reliability.
CCD Vision Alignment
1.3 MP CCD camera with advanced optical alignment for accurate PCB and stencil positioning.
Ultra-High Precision
Provides ±22 μm print accuracy and ±12.5 μm repeat positioning for fine-pitch PCB assemblies.
Automatic Cleaning System
Supports dry, wet, and vacuum cleaning to maintain consistent print quality.
Flexible PCB Support
Magnetic pins, support blocks, vacuum holding, and side clamps ensure stable PCB handling.
Fast Production Cycle
Optimized printing and quick changeover maximize production efficiency and reduce downtime.
SMEMA Compatible
Integrates seamlessly with standard SMT production lines for automated workflow.
Why Choose This Printer
Exceptional Printing Accuracy
Delivers precise and repeatable solder paste printing.
Intelligent Vision System
Ensures accurate PCB and stencil alignment every cycle.
High-Speed Production
Boosts productivity with fast printing and quick changeovers.
Reliable Industrial Automation
Provides stable, continuous operation with minimal maintenance.
Industries we serve
The GKG GLS-E Fully Automatic Solder Paste Printer is trusted across diverse electronics manufacturing industries, delivering precise solder paste printing, consistent quality, and high-speed SMT production for a wide range of PCB assembly applications.
Consumer Electronics
Automotive Electronics
Industrial Electronics
Telecommunications
Medical Electronics
EMS Manufacturing
MACHINE HIGHLIGHTS
Performance That Drives Precision
The GKG GLS-E combines cutting-edge printing technology with intelligent automation to deliver exceptional accuracy, speed, and reliability for high-volume SMT production.
±22 μm Print Accuracy
Ensures highly precise solder paste deposition for fine-pitch PCB assemblies.
1.3 MP CCD Camera
Advanced vision system delivers accurate PCB and stencil alignment.
Fast Production Cycle
High-speed printing improves throughput while maintaining print quality.
Automatic Cleaning
Dry, wet, and vacuum cleaning keep the stencil clean for consistent results.
510 × 510 mm PCB Support
Handles a wide range of PCB sizes for diverse SMT production needs.
SMEMA Compatible
Integrates seamlessly with existing SMT production lines and equipment.
