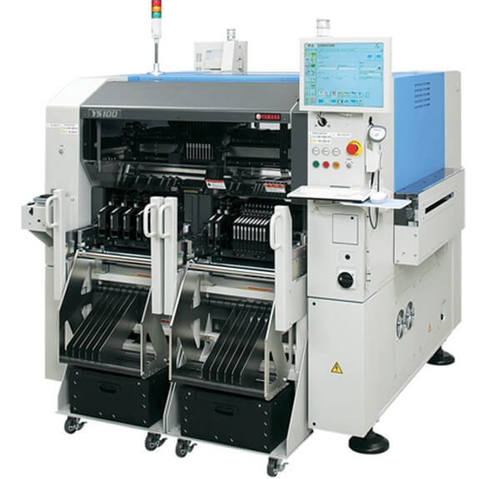

Yamaha YS100 High-Speed General-Purpose Modular Mounter

The Yamaha YS100 is a high-speed general-purpose modular mounter designed for efficient and reliable SMT component placement. With a mounting capability of up to 25,000 CPH and support for PCB sizes ranging from 50 × 50 mm to 700 × 460 mm, it provides flexible performance for a wide range of PCB assembly requirements.

The YS100 supports components from 0402 chips to 45 × 100 mm components, with component heights up to 15 mm and compatibility with ball-type electrodes. Its flexible component capacity, accurate placement performance, and multiple configuration options make it a practical solution for diverse and high-volume SMT production environments.

TECHNICAL SPECIFICATIONS

Yamaha YS100 Specifications

Key specifications of the Yamaha YS100 high-speed general-purpose modular mounter for flexible and efficient SMT production.

Machine Model Yamaha YS100
Model KJJ-000
Machine Type High-Speed General-Purpose Modular Mounter
Applicable PCB L50 × W50 mm to L700 × W460 mm
Mounting Capability 25,000 CPH
Mounting Accuracy Absolute Accuracy (μ+3σ): ±0.05 mm / CHIP (QFP)
Mounting Repeatability ±0.03 mm / CHIP (QFP)
Applicable Components 0402 (Metric Base) to 45 × 100 mm
Maximum Component Height 15 mm
Electrode Type Ball Type Electrodes Applicable
Number of Component Types Tape Reel: 96 / 126 types (Max. 8 mm width)
72 / 87 types (When sATS installed with 16 / 12 mm pitch interface)
Tray: 30 types (When sATS installed)
60 types (When dYTF installed)
External Dimensions L1,655 × W1,562 × H1,445 mm
L1,655 × W1,904 × H1,545 mm (When sATS installed)
L2,859 × W1,689 × H1,445 mm (When dYTF installed)
Machine Weight Approx. 1,650 kg (Main unit only)
Approx. 150 kg (sATS only)
Approx. 450 kg (dYTF only)
