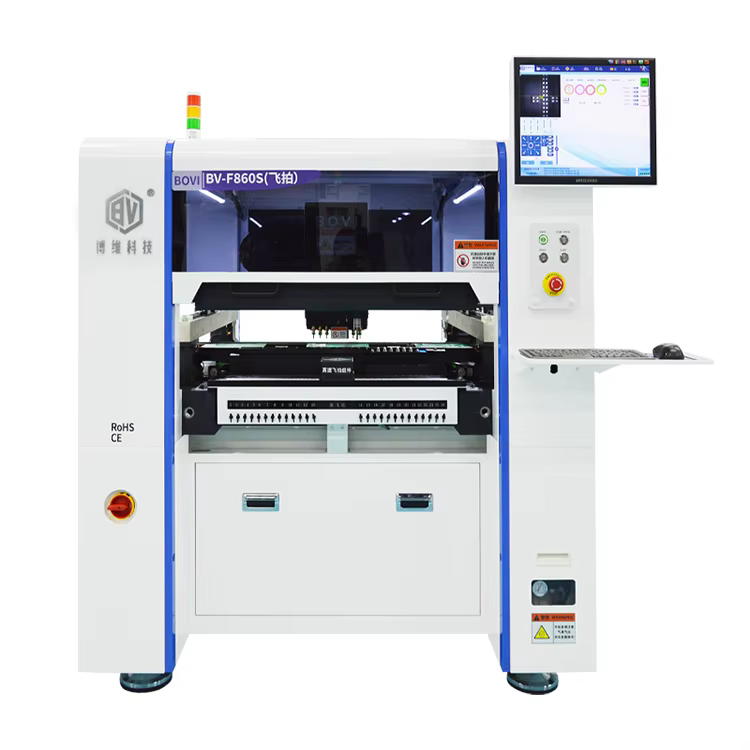

High-Speed 8-Head SMT Pick & Place Machine with Flying Vision Alignment
BOVI BV-F860S-D80 is a high-speed 8-head SMT pick-and-place machine equipped with a granite base and flying vision alignment system. It offers a placement rate of 14,000–20,000 CPH and features an automatic 12-hole nozzle changer, dual front and rear operator displays, and independent 8-head simultaneous pick-up for efficient PCB assembly.
The machine is designed for precision and stability during high-speed operation, utilizing TBI high-precision ground ballscrews, TBI high-load linear guideways, and Japanese servo motors. It supports automatic recognition and placement of loose components from a 12-compartment bulk tray, along with component library and MES system support. Optional features include a short-tape feeder, high-resolution camera, and vision-based placement verification for enhanced production flexibility and accuracy.
BOVI BV-F860S-D80 Specifications
Key specifications of the BOVI BV-F860S-D80 high-speed 8-head SMT pick-and-place machine, covering its placement performance, vision system, nozzle configuration, motion system, and component handling capabilities.
| Machine Model | BOVI BV-F860S-D80 |
|---|---|
| Machine Type | 8-Head SMT Pick & Place Machine with Granite Base and Flying Vision Alignment System |
| Placement Rate | 14,000 – 20,000 CPH |
| Pick-Up System | Independent 8-Head Simultaneous Pick-Up with Flying Vision Alignment System |
| Vision System | Flying Vision Alignment System with Bottom-Mounted Recognition Camera |
| Dual-Mark Cameras | Dual-Mark Cameras for Larger PCBs |
| Nozzle Changer | Automatic Nozzle Changer with 12-Hole Nozzle Library |
| Machine Base | Granite Base with Steel Keel Structure (Solid Cement-Filled Steel Chassis) |
| Machine Weight | Approx. 1.5 Tons |
| Feeder Capacity | 80 Feeder Slots |
| Bulk Component Handling | Automatic Recognition and Placement of Loose Components from Bulk Component Tray |
| Bulk Tray Capacity | 12 Compartments |
| Motion System | TBI High-Precision Ground Ballscrew and TBI High-Load Linear Guideway |
| XY Axis | Japanese Servo Motors with Repeated Positioning Accuracy Error within 0.01 mm |
| Z Axis | Closed-Loop System with Eight Sets |
| Operator Display | Dual Front and Rear Operator Displays for Two-Side Operation |
| Track Width Adjustment | Adjusted via Lead Screw |
| PCB Support | PCB Support Plate |
| Programming | Component Library + MES System Support |
| Short-Tape Feeder | Optional — Supports Components from Pre-Cut Short Tape Segments |
| High-Resolution Camera | Optional Upgrade for Higher Accuracy |
| Vision-Based Placement Verification | Optional |
