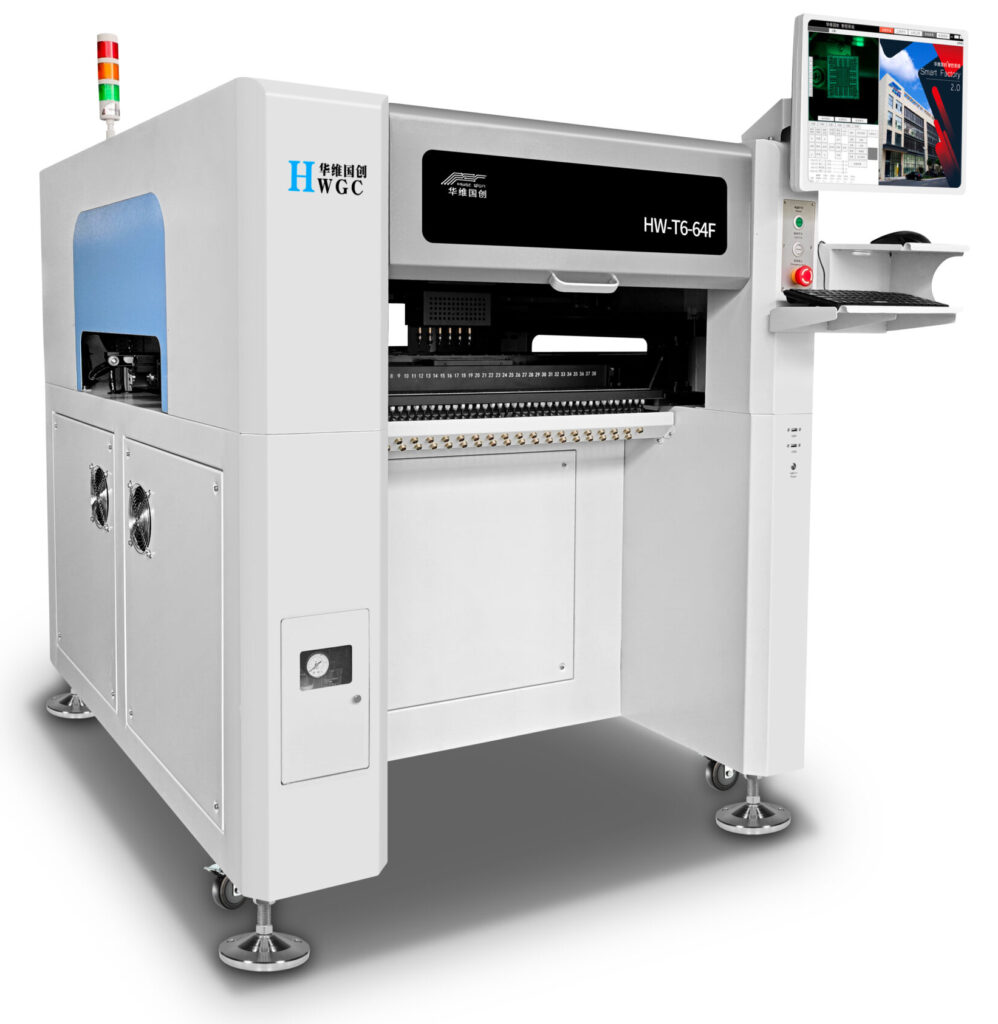

High-Accuracy 6-Head SMT Pick & Place Machine for Efficient PCB Assembly

The HW-T6-64F is a high-accuracy SMT pick-and-place machine equipped with 6 placement heads and support for up to 64 feeders. It delivers a mounting speed of 9,000–10,000 pcs/h, with 0.01 mm positioning accuracy and 0.02 mm repeated mounting accuracy. The machine supports PCBs up to 500 × 370 mm and components up to 7 mm in height, making it suitable for a variety of PCB assembly applications.

The HW-T6-64F features simultaneous recognition and picking with six heads, along with mark, fast recognition, and high-precision cameras for accurate component placement. Its configuration includes electric track adjustment, a dual linear motion guide with double ground ballscrew, AC servo motor, high-speed DSP driver, Japanese CKD vacuum generator, and a Windows-based SMT intelligent operating system. With a 1316 × 1360 × 1340 mm footprint and 438 kg weight, it offers a practical balance of precision, flexibility, and production efficiency.

TECHNICAL SPECIFICATIONS

HW-T6-64F Specifications

Key specifications of the HW-T6-64F high-accuracy SMT pick-and-place machine, covering its placement performance, component handling, vision system, motion control, and machine configuration.

Machine Model HW-T6-64F
Number of Placement Heads 6 (High-Accuracy)
Number of IC Trays 48
Number of Feeders 64 (Subject to 8 mm Feeder)
Positioning Accuracy 0.01 mm
Repeated Mounting Accuracy 0.02 mm
Mounting Speed 9,000 – 10,000 PCs/h
Applicable Components Resistor, Capacitor, Chip, Lamp Bead, etc.
Supported Maximum Area of PCB 500 × 370 mm
Feeder Types Electric Feeder, Pneumatic Feeder, Vibrating Feeder, IC Tray, etc.
Recognition Devices Mark Camera ×1, Fast Recognition Camera ×4, High-Precision Camera ×1
Maximum Height of Applicable Components ≤ 7 mm
Recognition Methods Simultaneous Recognition and Picking with Six Heads
PCB Convey Mode Three-Stage Entry, Automatic Connection from Left to Right, Automatic PCB Positioning
Mark Positioning Manual / Automatic
Programming Method Automatic Programming after Manually Importing Files of PCB Coordinates
Control System HuaweiGuochuang Control System
Maximum Step Length of XY Axis 629 mm × 679 mm
Tracks of XY Axis Double Linear Motion Guide + Double Ground Ball Screw
Motion Mode of XY Axis Intelligent Linkage of Acceleration and Deceleration of Curve and Line, Integrated Linear Interpolation Algorithm
Control Computer Industrial Control Computer with Intel High-Performance Processor
Adjusting Method of Tracks Electric
Range of Nozzle Buffer 4.5 mm
Maximum Step Length of Z Axis 20 mm
Range of Angle for Components ±180°
Motor AC Servo Motor
Driver High-Speed DSP Driver
Air Supply Requirements Oil & Water Filter, ≥ 60L Dust Filter, Air Pressure Stabilizer, etc.
Vacuum Supply of Nozzle Japanese CKD Vacuum Generator Integrating High-Speed Vacuum Burst Function
Range of Air Supply Pressure 0.5 – 0.6 MPa
Operating System Independent Research and Development SMT Intelligent OS Based on Windows
Vision Display 17-Inch Industrial Control Display
Cable German Igus Durable Flexible Cable (10 Million Times)
Power Supply 220 V / 50/60 Hz
Average Power 600 W
Machine Dimensions 1316 × 1360 × 1340 mm
Machine Weight 438 kg
