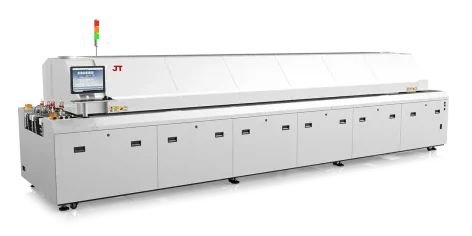

TFO Series Lead-Free Hot Air Reflow Oven
TECHNICAL SPECIFICATIONS
TFO-800 Reflow Oven Specifications
Detailed specifications of the TFO-800 lead-free hot air reflow oven for reliable and controlled SMT soldering.
| Model No. | TFO-800 |
|---|---|
| Heated Length | 3110 mm |
| Dimensions (L × W × H) | 5220 × 1430 × 1530 mm |
| Net Weight | Approx. 2250 kg |
| Exhaust Volume | 10 m³/min × 2 Ducts |
| Supply Power |
AC; 380V 3Φ5W 50/60Hz Option: 220V 50/60Hz |
| Power |
Starting: 30 KW Operating: 9 KW |
| Heat Up Time | Approx. 25 min |
| Temperature Range | Room Temperature – 300°C |
| Max. Width of PCB | 400 mm (Option: 450 mm) |
| PCB Top Height | Top 30 mm / Bottom 25 mm |
| Conveyor Direction | Left to Right (Option: Right to Left) |
| Fixed Rail Side | Front Rail Fixed (Option: Rear Rail Fixed) |
| Conveyor Height | 900 ± 20 mm |
| Conveyor Speed Range | 300 – 2000 mm/min |
| Data Storage | Various parameters and storable |
| Abnormal Alarm |
Abnormal Temperature (Over/Under Heat) Sound & Light Alarm |
| No. of Heating Zones | Top 8 / Bottom 8 |
| No. of Cooling Zones | Top 2 Cooling Zones |
| Control System | WIN10 + Computer + PLC |
| Temperature Control Method | PID + SSR |
| Thermocouple Wire | 4 Wires |
| Conveyor System | Single Rail + Mesh |
| Conveyor Control Mode | Inverter + Import Conveyor Motor |
| Chain Structure | Single Side Link Avoid Block |
| Width Adjustment | Electric Adjustable |
| Cover Open | Electric Open for Easy Maintenance |
| UPS Power | Backup power supply to ensure PCB production finish normally. |
| Cooling System | Forced Air Cooling |
KEY FEATURES
Key Features of TFO-800 Reflow Oven
Engineered for stable thermal performance, efficient PCB processing and convenient maintenance in SMT production.
16 Heating Zones
Features 8 top and 8 bottom heating zones for controlled thermal processing.
Cooling Zones
Two top cooling zones provide controlled cooling after the reflow process.
Precise Temperature Control
PID + SSR temperature control supports stable and accurate thermal management.
Electric Width Adjustment
Electric width adjustment allows convenient setup for different PCB requirements.
Adjustable Conveyor Speed
Conveyor speed can be adjusted from 300 to 2000 mm/min.
Temperature Alarm
Sound and light alarms indicate abnormal over-temperature or under-temperature conditions.
UPS Backup Power
Backup power helps ensure PCB production can finish normally during power interruptions.
Easy Maintenance
Electric cover opening provides convenient access for maintenance operations.
Forced Air Cooling
Forced air cooling supports controlled cooling within the reflow system.
