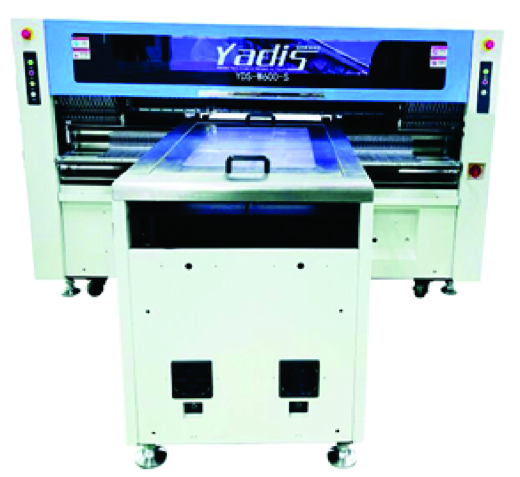

YDS-W600S Pick & Place Machine
The YDS-W600S Pick & Place Machine is a high-speed, high-precision SMT placement system designed for large-scale electronics and LED manufacturing. Engineered for efficiency and reliability, it features multi-head placement, an advanced vision system, and an intelligent automated feeder system.
With a placement speed of up to 60,000 CPH, the YDS-W600S delivers unparalleled precision, speed, and stability for high-demand production lines. Its user-friendly control system, inline conveyor integration, and industrial-grade durability make it a top choice for modern PCB assembly operations.
Product Features
- Ultra-Fast Placement Speed – Capable of placing up to 60,000 CPH (Components Per Hour) for high-volume manufacturing.
- Precision Vision System – Achieves ±0.01mm accuracy with advanced optical alignment technology.
- Supports Large PCBs – Compatible with PCB sizes up to 1800mm, making it ideal for LED and industrial applications.
- Multi-Feeder Compatibility – Works with intelligent automatic feeders for seamless operation.
- Automated Conveyor Integration – Enables continuous, high-speed inline production.
- Smart Control Interface – Features touchscreen controls, real-time monitoring, and diagnostic capabilities.
- Heavy-Duty & Reliable Design – Built for 24/7 industrial operation with minimal maintenance.
- Energy Efficient – Optimized for low power consumption while maximizing productivity.
Product Applications
- LED Manufacturing – Ideal for LED strips, panel lights, streetlights, and display modules.
- Consumer Electronics – Suitable for assembling PCBs for mobile devices, IoT gadgets, and smart home products.
- Automotive Electronics – Used in the production of LED headlights, infotainment systems, and dashboard electronics.
- Medical Equipment – Ensures precision placement for diagnostic devices and wearable medical technology.
- Industrial Electronics – Facilitates manufacturing of power supply units, automation control systems, and embedded circuits.
