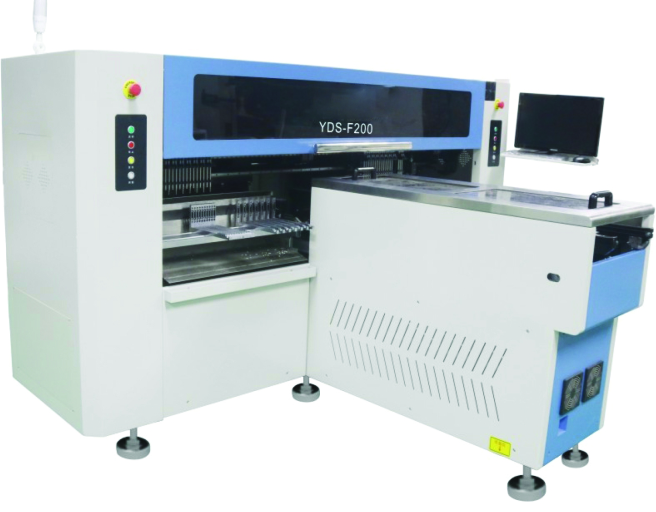

YDS-F200 Pick & Place Machine

The YDS-F200 Pick & Place Machine is a high-speed, precision SMT placement system designed for large-scale electronic manufacturing, including LED lighting, consumer electronics, and industrial PCBs. With advanced vision alignment, a multi-head placement system, and automated feeder integration, this machine offers high efficiency, accuracy, and reliability for mass production environments.

Designed for 24/7 industrial operation, the YDS-F200 delivers superior placement speed of up to 50,000 CPH, ensuring high throughput with minimal downtime. Its intelligent software control, user-friendly interface, and automated inline conveyor system make it an ideal choice for high-demand electronic assembly lines.

YDS-F200 Pick & Place Machine

Product Features

  • Ultra-Fast Placement – Capable of placing up to 50,000 CPH (Components Per Hour) for high-speed production.
  • Advanced Vision Alignment – Ensures ±0.012mm placement accuracy for precise component positioning.
  • Large PCB Handling Capability – Supports PCB sizes up to 1800mm, making it ideal for LED panel and industrial PCBs.
  • Multi-Feeder System – Works with various intelligent feeders to enable seamless high-speed operation.
  • Automated Inline Conveyor System – Allows continuous, hands-free production integration for efficiency.
  • Smart Software & User-Friendly Interface – Features touchscreen controls, real-time monitoring, and diagnostic functions.
  • Heavy-Duty & Reliable Construction – Built for 24/7 operation with minimal maintenance needs.
  • Energy-Efficient & Cost-Effective – Reduces power consumption while maximizing productivity.

Product Applications

  • LED Lighting Production – Manufacturing LED strips, panel lights, streetlights, and display boards.
  • Consumer Electronics – PCB assembly for smartphones, smart home devices, and IoT applications.
  • Automotive Electronics – LED headlights, dashboard displays, and smart vehicle lighting solutions.
  • Medical Equipment – PCBs for diagnostic tools, wearable health devices, and monitoring systems.
  • Industrial Electronics – Power supplies, communication devices, and embedded control systems.

Technical Parameters

Product Specification
Speed 180000 - 250000 CPH
Accuracy ± 0.04mm Chip
Minimum Spacing 8mm
Circuit Board Max: 300 x 1200mm / Min: 80x80mm
Placement Component range LED 2121/3014/3020/2835/3528/5050/5730/0603/0805/1206 IC
length x Width x Height 2850x2650x1450 mm
Total Weight 2000 Kg
Placement mode Pickup and placement
Vision System 5 sets of imported Video cameras / Vision alignment, MARK correction
Circuit Board Thickness : 0.5-5mm / Pressure Pneumatic
Operating System Software : Windows XP / Monitor : LED Monitor / Inputting Device : Keyboard, Mouse
Height 15mm
Components 2mm
Placed feeder Quantity 51PCS
Power Supply 220V 50Hz
Power Consumption 6kw
pressure 0.5mpa
Temperature 25°C ± 5°C
Rail Drive 1.2m / The Maximum length : 1.2m
Transmission speed >300mm
Transmission direction Unidirectional front back
Transmission mode online
Bit mode Optics
Air Pressure >5.0KG / Cm2
Air Consumption < 100L/min
Electrical control Independent Research and Development
1 set of movement control card mode Independent Research and Development
XY axis drive mode X /Y / Z- axis servo motor control
