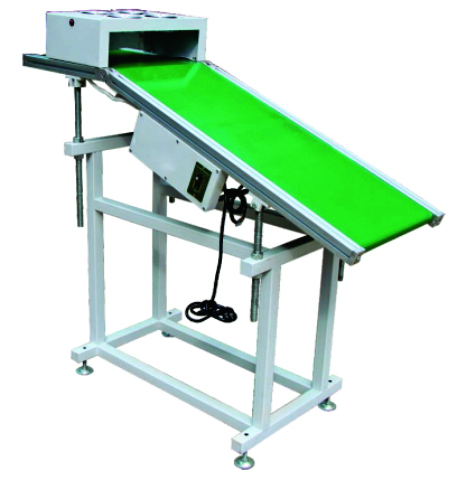

WAVE SOLDERING OUTPUT CONVEYOR
The Wave Soldering Output Conveyor is a critical component in the through-hole (THT) and mixed-technology PCB assembly process, designed to transport soldered circuit boards from the wave soldering machine to the next stage of production. This conveyor ensures smooth, controlled, and reliable board handling while allowing adequate cooling and inspection of soldered components.
Built with ESD-safe materials, it minimizes the risk of electrostatic discharge, ensuring the protection of sensitive electronic components. The conveyor can be customized in length, width, and belt material to suit different production line requirements.
Product Features
- Smooth PCB Transfer – Ensures a controlled and stable exit from the wave soldering machine.
- Cooling & Inspection Integration – Allows for natural cooling and optional integration of inspection stations.
- Adjustable Speed Control – Variable conveyor speed to match production line efficiency.
- ESD-Safe Design – Protects sensitive electronic components from static discharge.
- Durable & Sturdy Frame – Made from high-strength aluminum or stainless steel for long-term reliability.
- User-Friendly Operation – Equipped with a PLC-based control system for easy operation and speed adjustments.
- Customizable Length & Width – Available in various sizes to fit production line needs.
Product Applications
- Wave Soldering Lines – Transfers PCBs post-soldering for cooling and inspection.
- Through-Hole (THT) & Mixed PCB Assembly – Essential for handling THT-assembled boards.
- Electronics Manufacturing – Used in consumer electronics, automotive electronics, and industrial PCB production
- Aerospace & Defense Electronics – Supports high-reliability PCB soldering processes.
- Automated Production Lines – Seamlessly integrates with other assembly and testing stations.
