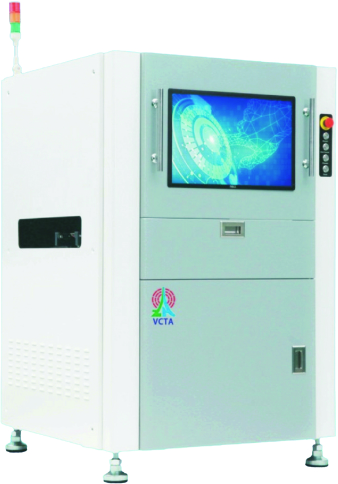

VCTA Inline Automated Optical Inspection (AOI) System
The VCTA Inline AOI System is a high-speed automated optical inspection solution designed for real-time defect detection in fully automated SMT production lines. This inline AOI system ensures seamless integration with reflow soldering, wave soldering, and assembly lines, providing non-stop PCB inspection with minimal human intervention. Utilizing advanced imaging, AI-powered algorithms, and real-time data analysis, the system delivers high accuracy in detecting missing components, soldering defects, polarity issues, and misalignments—ensuring top-tier quality control in mass production environments.
Product Features
- Seamless Inline Integration – Works directly with SMT and THT production lines, improving efficiency and reducing downtime.
- High-Speed Inspection – Equipped with multi-camera vision technology for fast, precise defect detection.
- AI-Powered Image Processing – Uses deep-learning algorithms for enhanced accuracy and defect classification.
- 2D & 3D Inspection Capabilities – Combines high-resolution 2D imaging with 3D height measurement for in-depth analysis.
- Multi-Spectrum LED Illumination – Ensures consistent lighting conditions for precise image capturing.ation.
- User-Friendly Interface – Intuitive GUI with easy programming, defect marking, and data reporting.
- Smart Data Analysis & Industry 4.0 Ready – Enables real-time monitoring, reporting, and remote diagnostics.
Product Applications
- Surface Mount Technology (SMT) and Through-Hole Technology (THT) inspection.
- Inline PCB inspection post-reflow, pre-reflow, and solder paste printing.
- Mass production quality control for consumer electronics, automotive, medical, and aerospace industries.
- Real-time defect detection for high-speed PCB manufacturing lines.
- Smart factory automation and Industry 4.0-based electronic production.
