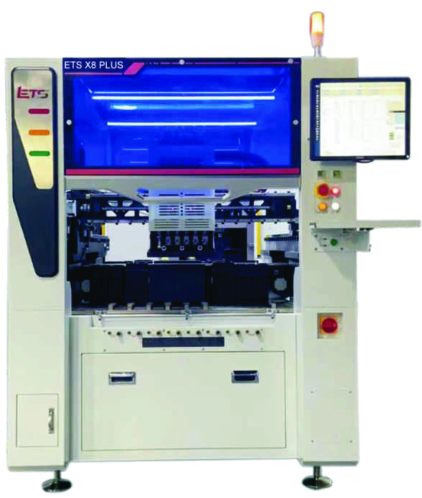

ETS X8 Plus Odd Shape Insertion Machine
The ETS X8 Plus Odd Shape Insertion Machine is a next-generation automated system designed for high-speed and high-precision insertion of irregularly shaped electronic components in PCB assembly. Equipped with advanced AI-powered vision alignment, multi-angle placement capabilities, and adaptive force control, the ETS X8 Plus ensures exceptional accuracy and efficiency in handling complex component insertion tasks.
With its versatile feeder system supporting tray, tape, tube, and bulk components, this machine is ideal for industries requiring high-mix, low-to-medium volume production with superior automation and reliability.
Product Features
- Ultra-Fast Insertion Speed – Supports up to 9,000 insertions per hour, boosting productivity.
- 360° Multi-Angle Placement – Ensures precise orientation of odd-shaped components.
- AI-Driven Vision System – Advanced optical recognition and alignment for superior accuracy.
- Adjustable Insertion Force – 1N to 60N force control, preventing damage to delicate components.
- Flexible Feeder Options – Supports tray, tape, tube, and bulk feeders for maximum versatility.
- User-Friendly Touchscreen Interface – Easy programming and real-time monitoring.
- Seamless SMT/THT Integration – Compatible with existing PCB assembly lines.
- Self-Diagnostic & Error Detection – Reduces downtime and increases efficiency.
Product Applications
- Automotive Electronics – Insertion of connectors, relays, and power modules.
- Consumer Electronics – Efficient handling of diverse PCB component assemblies.
- Industrial Automation – Assembly of high-precision control circuits.
- Medical Devices – Placement of customized electronic components.
- Aerospace & Defense – Ensures high-reliability mission-critical PCB assembly.
