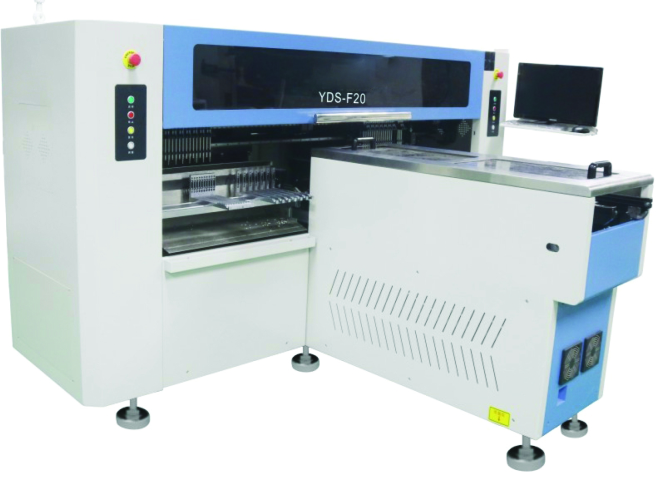

DS-F20 Pick & Place Machine
The DS-F20 Pick & Place Machine is a high-speed, high-precision SMT placement system designed for mass production of LED products, consumer electronics, and industrial PCBs. Featuring a multi-head placement system, advanced vision alignment, and a fully automated feeder system, this machine delivers exceptional accuracy, efficiency, and reliability.
With a placement speed of up to 35,000 CPH, the DS-F20 is an ideal choice for large-scale manufacturing operations that require consistent quality, high throughput, and minimal downtime. Its robust industrial design and intelligent software control make it a cost-effective and future-ready solution for modern electronic assembly lines.
Product Features
- Ultra-Fast Component Placement – Handles up to 35,000 CPH (Components Per Hour), improving production efficiency.
- Advanced Vision System – Ensures ±0.015mm placement accuracy for precise component alignment.
- Large PCB Handling Capability – Supports PCB sizes up to 1500mm, perfect for LED strip and large PCB applications.
- Multi-Feeder System – Works with multiple intelligent feeders for seamless, high-speed operation.
- Automated Inline Conveyor System – Enables continuous and hands-free production integration.
- User-Friendly Interface – Features smart touchscreen control with real-time monitoring and diagnostic functions.
- Durable & Reliable Build – Built for 24/7 industrial operation with minimal maintenance requirements.
Product Applications
- LED Lighting Industry – LED strip lights, panel lights, streetlights, and display boards.
- Consumer Electronics – Smartphones, smart home devices, and IoT circuit boards.
- Automotive Electronics – LED headlights, dashboard displays, and smart lighting solutions.
- Medical Equipment – PCBs for diagnostic devices, wearable health technology, and monitoring systems.
- Industrial Electronics – Power supply units, communication devices, and embedded control systems.
