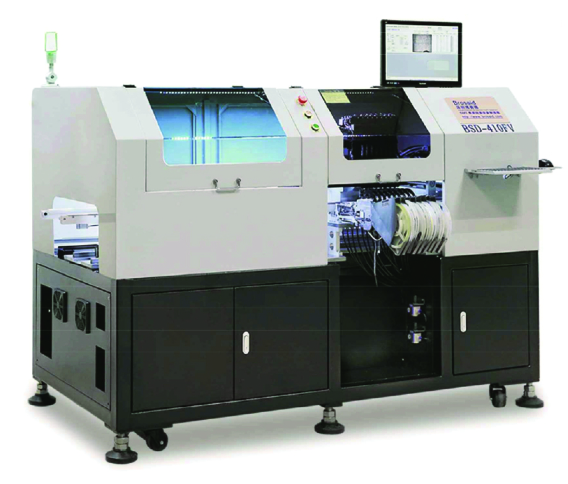

BSD-410FV Inline LED Pick & Place Machine
The BSD-410FV Inline LED Pick & Place Machine is a high-speed, fully automated SMT placement system designed for inline LED production. This machine is optimized for mass manufacturing of LED lighting, display panels, and electronic assemblies, offering exceptional speed, precision, and efficiency.
Equipped with advanced vision alignment, automated feeder compatibility, and an inline conveyor system, the BSD-410FV seamlessly integrates into high-volume production lines, reducing labor costs and increasing throughput. With precision accuracy of ±0.02mm and a placement speed of up to 22,000 CPH, this system ensures consistent and reliable LED component placement.
Product Features
- High-Speed Inline Operation – Designed for continuous production with speeds up to 22,000 CPH (Components Per Hour).
- Inline Conveyor System – Fully automated inline integration for seamless SMT production.
- Vision Alignment Technology – Ensures ±0.02mm placement accuracy for high-quality assembly.
- Large PCB Handling – Supports long LED boards up to 1200mm, ideal for LED lighting applications.
- Multi-Feeder Compatibility – Works with various automatic feeders for non-stop operation.
- Smart Software Control – User-friendly touchscreen interface with real-time monitoring and optimization.
- Durable & Reliable Build – Designed for 24/7 industrial operation with minimal maintenance requirements.
Product Applications
- LED Lighting Manufacturing – Streetlights, panel lights, tube lights, and LED strips.
- LED Display Panel Production – Digital billboards, signage, and TV backlighting.
- Automotive LED Applications – Headlights, interior lighting, and dashboard illumination.
- Consumer Electronics – Smart LED devices and wearable LED displays.
- Industrial & Commercial Lighting – High-power LED modules for stadiums, warehouses, and architectural lighting.
