4-Head Pick & Place Machine HW-T4-50F/44F (Vertical Machine)
The HW-T4-50F/44F (Vertical Machine) is an advanced 4-head pick & place system designed for high-speed and precision SMT (Surface Mount Technology) component placement. Unlike traditional desktop models, this vertical machine offers an optimized structure for enhanced efficiency, stability, and space utilization in small to medium-scale PCB assembly lines. Its multi-head system significantly boosts productivity, making it ideal for manufacturers aiming to scale up their operations while maintaining superior accuracy.
Equipped with a high-precision vision system, automatic feeder compatibility, and an intelligent control interface, this machine is a cost-effective solution for industries requiring reliable SMT assembly, including consumer electronics, automotive, LED production, and medical devices.

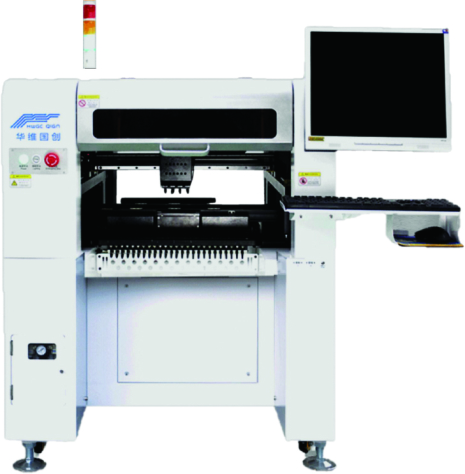

-min.jpg)
Product Features
- 4-Head High-Speed Placement System – Enables simultaneous placement of multiple components, improving efficiency.
- Vertical Structure Design – Optimized for space-saving and enhanced stability.
- Precision Vision Alignment – Ensures ±0.02mm accuracy for consistent and error-free placement.
- Wide Component Compatibility – Supports 0201 to large IC packages (QFP, TQFP, BGA, etc.).
- Automatic Feeder System – Designed for efficient component loading and seamless operation.
- Intelligent Touchscreen Interface – User-friendly software with real-time monitoring and parameter adjustments.
- High-Speed Performance – Capable of placing up to 10,000 components per hour (CPH).
- Durable & Robust Construction – Engineered for long-term reliability and stable performance in industrial environments.
Product Applications
- Consumer Electronics Manufacturing – Ideal for assembling circuit boards for smartphones, home appliances, and smart devices.
- Automotive Electronics – Ensures precision placement for vehicle control modules, sensors, and infotainment systems.
- LED Assembly – Perfect for high-speed placement of LED chips on PCBs for lighting and display technology.
- Medical Electronics – Used for the precise assembly of diagnostic and healthcare device circuit boards.
- Telecommunication & Networking – Ensures high-precision assembly of PCB components for routers, modems, and communication equipment.
