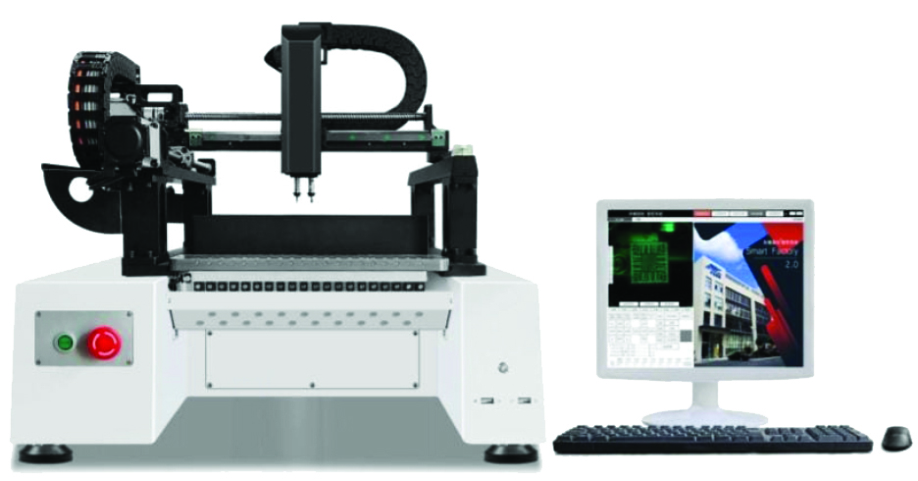

2-Head Pick & Place Machine HW-T2-40F

The HW-T2-40F is a high-precision, 2-head pick & place machine designed for efficient and accurate Surface Mount Technology (SMT) component placement. This machine is ideal for small to medium-scale PCB assembly, offering advanced automation with minimal operator intervention. With its dual-head system, it enhances production speed while maintaining high placement accuracy. The HW-T2-40F is an excellent choice for manufacturers looking to optimize their assembly line with a cost-effective yet powerful solution.

High Precision Manual Stencil Printer 3040

Product Features

  • Dual-Head System – Increases placement efficiency by simultaneously handling multiple components.
  • High-Speed Operation – Capable of placing thousands of components per hour, improving productivity.
  • Precision Vision Alignment – Ensures accurate component placement with minimal errors.
  • User-Friendly Control Interface – Intuitive touchscreen and software system for easy operation.
  • Automatic Feeder System – Streamlines the component feeding process for uninterrupted workflow.
  • Compact and Sturdy Design – Ideal for both small-scale and large-scale PCB manufacturing setups.

Product Applications

  • Electronics Manufacturing – Essential for assembling circuit boards for consumer electronics, industrial controls, and more.
  • LED Production – Ideal for LED strip assembly and lighting PCB manufacturing.
  • Automotive Electronics – Used in assembling vehicle control units, sensors, and infotainment systems.
  • Telecommunication Equipment – Ensures precise component placement in networking and communication devices.

Technical Parameters

Product Model HW-T2-40F
Patch 0.05mm Repeat Loading Accuracy 0.05mm
Positioning accuracy 0.01mm Continuous working hours Cab work continuously > 24H without shutdown
Patch Speed 2500-4000pcs/h
Patch Area 320x230mm--50x50mm Scope of Patch 0201,0402,0603,0805,1206, LED beads, diode, triode, SOT, 30 x 30mm, pin spacing greater than 0.3mm GFP, BGA, etc.,acceptable visual customization of alien components.
Pending Head System The Number of Suction Mouth 2 Feed System Quantity of Feeder 40 bits (subject to 8mm fly up)
The Nozzle Type JUKI RUI is applicable Types of Feeder Electric fedia,pneumatic fedia, Vibration fedia, IC tray, etc
Component Angle Support ±180° Fedia Type Applicable to the YAMAHACL series fedia
Available element height ≤7mm Number of IC Disk 2 plates (20 bits)
Take the same way single head take put IC Disk Size L 130 x W 55mm
Vacuum buffer range 4.5mm Pending Method Automatically optimize the item order to install the items as promoted
Maximum trip on the Z axis 22mm Method of feeding Automatic Feeding
PCB board Bearing System Baseline thickness ≤3mm Gas Supply System Vacuum Mechanism Vacuum generator (high speed break with vacuum damage)
Orbital Regulation manual regulation Vacuum mechanism High-speed, high-flow vacuum generator for active destruction
Change Plate mode manual upper and lower panels Bleed Pressure 0.4-0.5mp
Bearing Structure Customized, industrial-grade, high-precision aluminum alloy structure Gas Source requirement No less than 50L external connection, dust filtration, air pressure stabilization device and oil and water separation device are required.
Kinetic control system operating system Based on the windows system , we have independently developed the Huawei International Innovation Intelligent operating system. Vision System Identify equipment 1 Mark Camera and 1 High-precision camera
Control the host Intel high-performance processor industrial control host Indicator A 17-inch industrial control display
driving system High-speed DSP drive, an AC servo motor How to take photos fixed shot slight pair center
Security system Emergency rotary stop button RM Routine element Identification and alien element feature indentification
XY maximum stroke 320mm x 527mm Mark point identification Manual / fully automatic postion
XY drive the track Linear guide rail + rolling wire rod Security detection Leakage material automatic correction, component Angle automatic correction, invalid automatically thrown
XY motor pattern Intelligent curve acceleration and deceleration linear linkage, with straight line insertion algorithm Programming method Import the coordinate file, one-key automatic programming, the optimal path
Exercise protection High wear-resistant tank chain and flexible cable Compatible file format The CSV / TXT file format can be imported
Circuit protection Leakage protector, thermosetting shell, insoluble not melt; excellent interface, no cracking, leakage prevention power AC 220V 50/60Hz 1500W
outline dimension (Before packaging) L670 * W848 * H655mm (After packaging) L770 * W950 * H750mm weight of equipment (Before packaging) 76kg (after packaging) 96kg
